Configuring Drivers
In most cases, creating new connection is pretty straightforward process. But if you:
- Want to work with different versions of the DBMS client libraries in different connections, established simultaneously
- Want to choose an explicit version of the client library (for instance, to use one of many LIBMYSQL.DLLs installed on the workstation)
- Want to set up drivers that require parameters to be specified, like MySQL Embedded server
- Have no installed client libraries, but have those as portable (folder of DLLs)
- Have issues while you’re trying to establish connection
– then you should configure a driver. In general, the process consists of:
- Specifying base driver.
- Specifying path to client library.
- Setting up additional parameters, if needed.
Click Configure button to open driver configuration file:
This is a simple INI file, where
- sections in square brackets highlighted with red – names of your configured (or so called “virtual“) drivers. Choose it by your flavor (for instance, specifying DBMS version)
- BaseDriverID key value – code of standard (base, or parent) driver
- VendorLib with platform suffix – full path to the client library

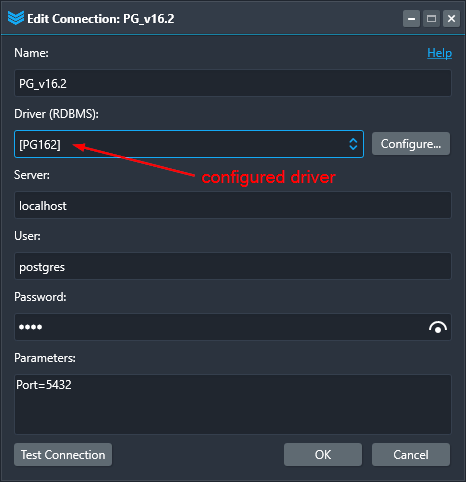

After you added your virtual driver, click Save button, then select it in the Driver drop-down list and click Test Connection to check if driver configuration was successful:
Driver Configuration Parameters
The following parameters can be specified:
| Parameter | Description | Applied to Drivers |
|---|---|---|
| VendorLib[ | Win32 | Win64 | MacOS32 | MacOS64 | UIX32 | UIX64] | The DBMS client software API DLL name. For example: libmysql510.dll. |
Oracle PostgreSQL Firebird/Interbase MySQL |
| VendorHome[ | Win32 | Win64 | MacOS32 | MacOS64 | UIX32 | UIX64] | The Oracle Home name. | Oracle |
| The base installation path. For example: C:\ib\ib2007. | Interbase | |
| The base installation path for a normal server. For example: C:\MySQL\MySQL5-1-7. Or the path to LIBMYSQLD.DLL for an embedded server. For example C:\MyAPP\MySQL. | MySQL | |
| ODBCDriver | ODBC driver name. For example: Adaptive Server Anywhere 8.0. | All ODBC based |
| ODBCAdvanced | ODBC driver additional parameters. The string consists of ODBC driver parameters separated by semicolon. For possible values, check the vendor documentation. | All ODBC based |
| EmbeddedArgs | MySQL embedded server arguments. The string consists of MySQL server arguments separated by semicolon. For possible values, check the vendor documentation. For example: --datadir=./data;--language=./;--skip-innodb. | MySQL |
| EmbeddedGroups | MySQL embedded server configuration file groups. | MySQL |
| NLSLang | Oracle NLS_LANG environment variable value. | Oracle |
| TNSAdmin | Oracle TNS_ADMIN environment variable value. | Oracle |
if the VendorLib is specified (additionally, you may specify a suffix, designating a platform), the app uses the specified library. If the VendorHome is specified, the DLL with default name from the Bin subfolder is used.
Configured Drivers Examples
[Ora815]
; Ora815 virtual driver will use specified Oracle Home
BaseDriverID=Ora
VendorHomeWin32=OraHome815
VendorHomeWin64=OraHome815_64
[MySQL327]
; MySQL327 virtual driver will use specified LIBMYSQL.DLL
BaseDriverID=MySQL
VendorLib=c:\LIBMYSQL327.DLL
[MySQL510_Embedded]
; MySQL510_Embedded virtual driver will use specified MySQL embedded library and arguments
BaseDriverID=MySQL
VendorLib=c:\LIBMYSQLD.DLL
EmbeddedArgs=–datadir=./data;–language=./;–skip-innodb;–skip-networking
[MSSQL_2000]
; MSSQL_2000 virtual driver will use specified ODBC driver
BaseDriverID=MSSQL
ODBCDriver=SQL SERVER
[ASA]
; ASA base driver will use specified ODBC driver
ODBCDriver=Adaptive Server Anywhere 8.0
[FB21]
; FB21 virtual driver will use specified Firebird client library
BaseDriverID=FB
VendorLibWin32=C:\ib\fb21\bin\fbclient.dll
VendorLibWin64=C:\ib\fb21_64\bin\fbclient.dll
[FB21_Embedded]
; FB21_Embedded virtual driver will use specified Firebird client library
BaseDriverID=FB
VendorLib=C:\ib\fb21_embed\bin\fbembed.dll
Available Base Driver Values
Below you can find list of DBMSes and their corresponding BaseDriverID value:
| DBMS | BaseDriverId |
|---|---|
| Oracle | Ora |
| MySQL | MySQL |
| MS SQL Server | MSSQL |
| PostgreSQL | PG |
| MongoDB | Mongo |
| SQLite | SQLite |
| IBM DB2 | DB2 |
| IBM Informix | Infx |
| MS Access | MSAcc |
| Teradata | TData |
| SAP Advantage DB Server | ADS |
| SAP SQL Anywhere | ASA |
| Firebird | FB |
| InterBase | IB |
| IBLite | IBLite |
| NexusDB | Nexus |
| DataSnap | DS |
| TDBX | TDBX |
| ODBC | ODBC |
